Heat pumps for your Home.

Heat Pumps ZEON water-air heat pumps are a combination of all modern elements. The anti-corrosive, matte black plastic casing, eco-friendly refrigerant R290, full DC inverter, silent technology, and modern design are just some of the advantages of these powerful heat pumps.

Check out our range of heat pumps and choose the model that's right for your building

01. Ultra ecological refrigerant

R290 refrigerant is considered the most promising refrigerant in the industry.

02. Energy efficiency

Excellent energy efficiency parameters of our heat pumps guarantee low operating costs.

03. Inverter technology

Inverter technology, to ensure efficient heating/cooling of the house and hot water even in extremely cold climate.

04. Stable operation at -25°C

Thanks to the unique Inverter EVI technology, GreenTherm can operate efficiently at a temperature of -25°C, maintaining a high COP ratio and reliable stability.

05. Super silent

Low noise level. ZEON is committed to creating a super quiet work environment for the user.

06. 5-year warranty

ZEON heat pumps are covered by an extended 5-year warranty as standard.

Super high energy efficiency A+++


Excellent energy efficiency parameters of our heat pumps guarantee low operating costs. ZEON HEAT PUMPS have the highest energy efficiency class A+++, both for heating at 35°C and 55°C..

Zeon Heat Pumps

ZEON DESIGN & TECHNOLOGY

ZEON heat pumps combine environmentally friendly refrigerant and inverter technology to provide efficient heating/cooling and hot water, even in extremely cold climates.

ASA Material
Thanks to the unique Inverter EVI technology, the ZEON heat pump can operate efficiently at temperatures as low as -25°C, maintaining a high COP and reliable stability.


Stable operation at an ambient temperature of -25°C
ZEON is committed to creating a super-quiet operating environment for the user. The ZEON heat pump employs multiple noise reduction technologies, and each product has been extensively tested and optimized.


Super silent
The inverter technology ensures efficient heating/cooling of your home and hot water even in extremely cold climates.


Full DC inverter technology
The inverter heat pump features a high-quality controller with a 5-inch color touchscreen, which is one of the key elements of this modern heat pump.


Smart Touch Display
The ZEON inverter heat pump combines all modern features: an anti-corrosion matte black plastic housing, environmentally friendly R290 refrigerant, full DC inverter, quiet operation, and a modern appearance—just some of the advantages of this powerful heat pump.

Extremely high charge and discharge rates, efficient and reliable

We provide tailored energy storage solutions designed specifically for diverse applications such as industry, solar parks, microgrids, and fossil power plants. This customization ensures optimal performance and cost- effectiveness in each unique operational environment. ZEON prioritizes sustainability with recyclable and replaceable battery cells, promoting a circular economy and minimizing environmental impact compared to competitors with less eco-friendly products.

Super Silent

Low noise level. Sleep peacefully—our heat pumps create a super-quiet working environment for the user. ZEON employs multiple noise reduction technologies, and each product has been extensively tested and optimized.
42-46 dB(A), depending on the device, at a distance of 1 meter from the heat pump.

For comparison:

  • 90 dB(A) — street traffic

  • 20 dB(A) — whisper

  • 10 dB(A) — rustling leaves

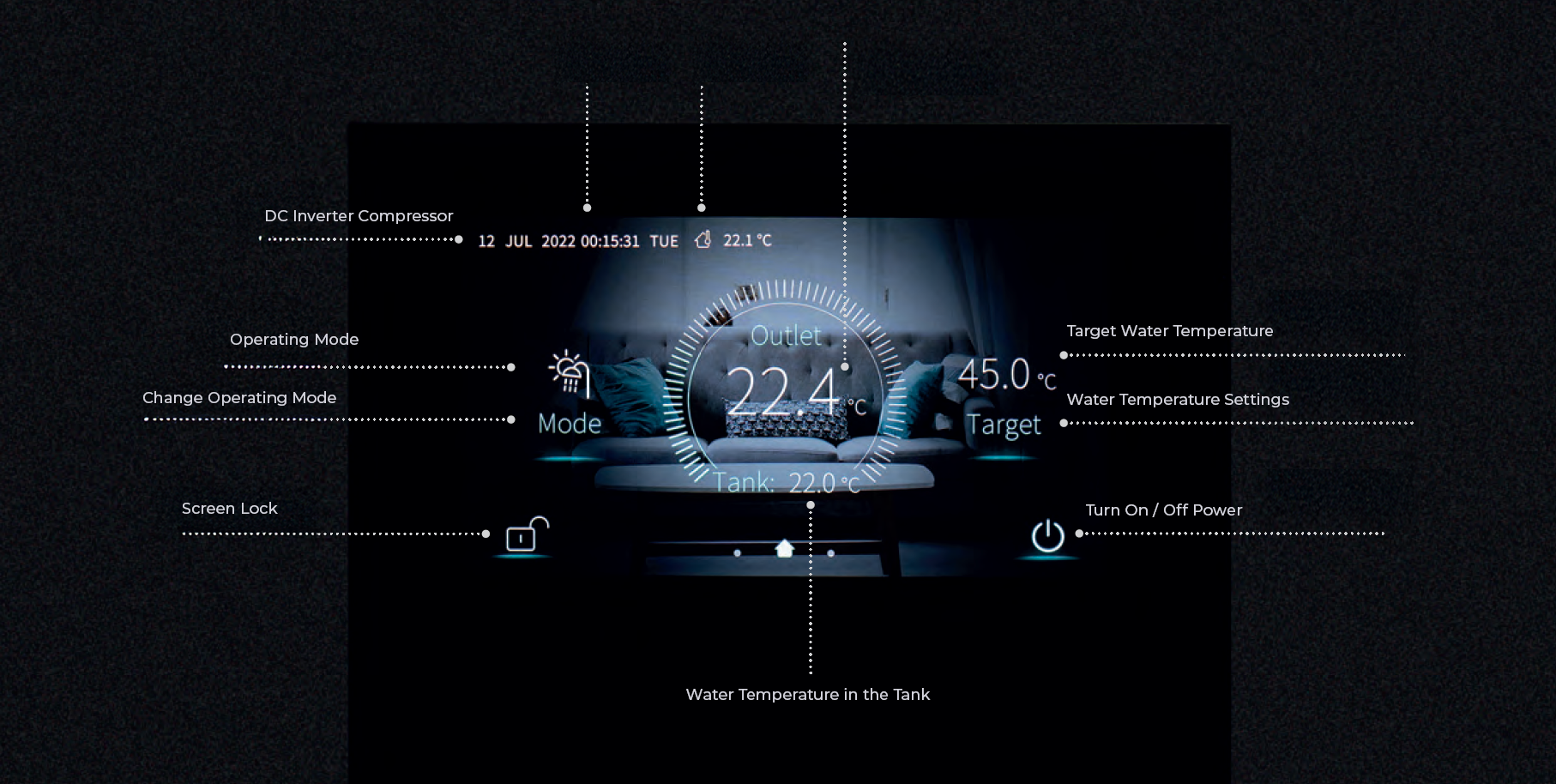

Smart Touch
The intelligent touch controller allows you to view real-time data and intuitively set the parameters of your heat pump.

Zeon HP50

    • Rated Voltage: 380-415V, 3-phase

    • Rated Frequency: 50 Hz

    • Rated Power: 19,840 W

    • Rated Current: 30.3 A

    • Protection Class: Class I

    • Protection Against Moisture: IP X4

    • Construction: Stationary

    • Supply Connection: Permanent connection to fixed wiring

    • Operation Mode: Continuous operation

    • Refrigerant/Charge: R290 / 4.80 kg

    • Declared Parameters: Average

    • Sound Power Level: Not available (N/A)

    • Series Number: 8A00230418003223


  • roduct warranty on materials and workmanship

    15 years

    Linear power output warranty

    30 years

    We also provide the suitable inverters. For more information, please contact us directly.

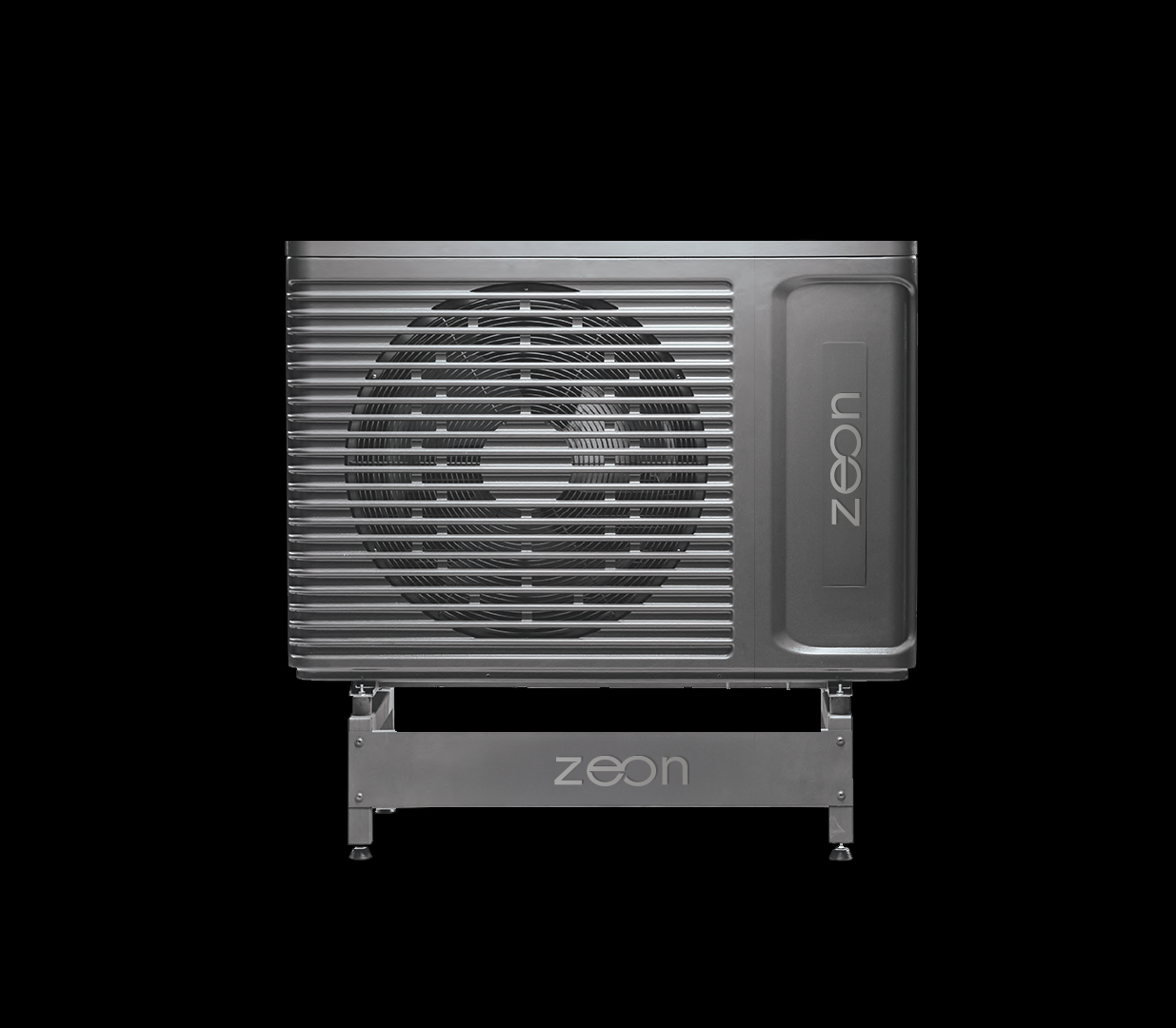

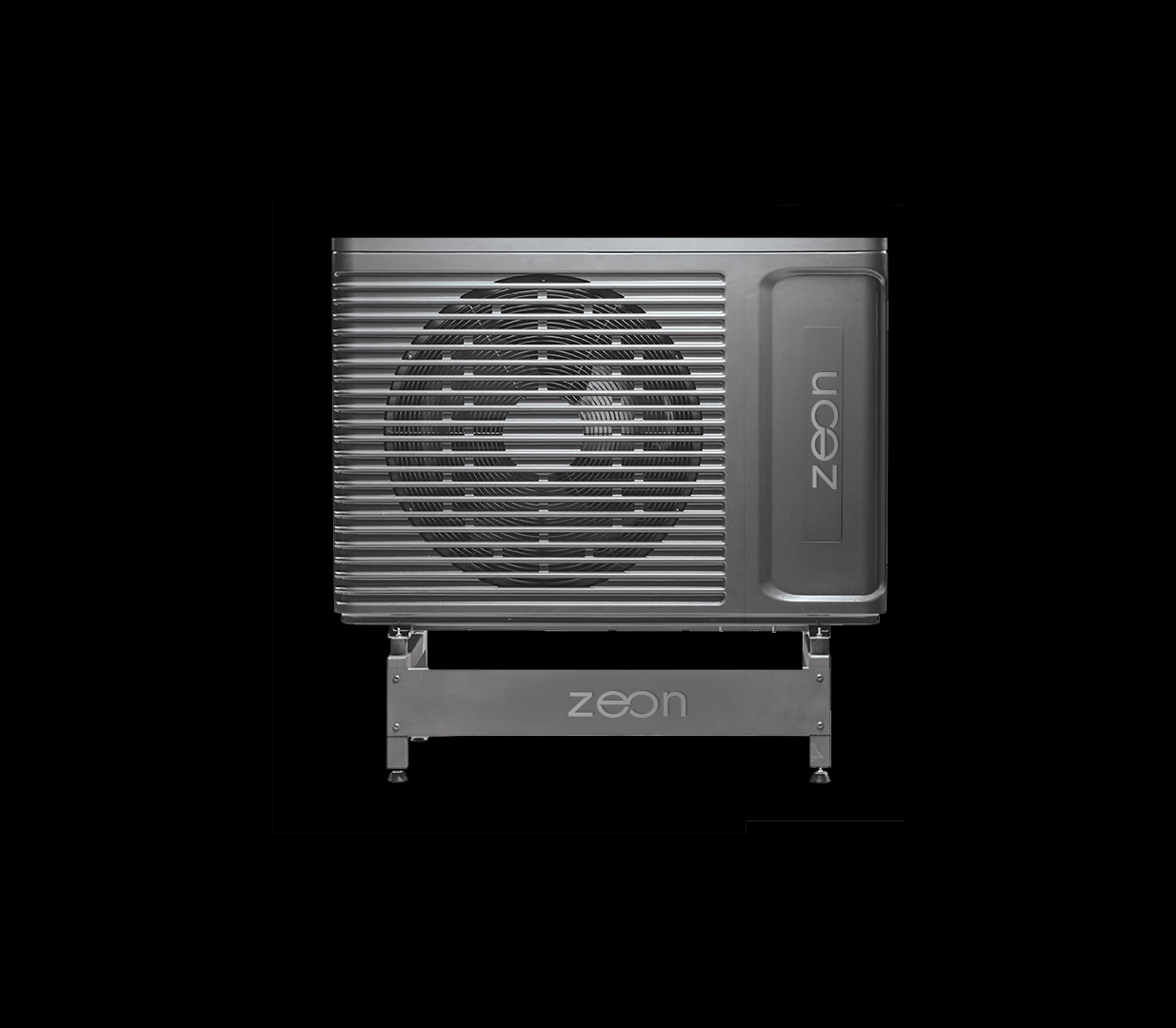

Zeon HP

  • Power Supply:
    220-240V / 1-phase ~ / 50Hz

    Input Power:
    6 kW

    Heating (A7/W35):

    • Capacity Range: 2.94 – 9.00 kW

    • Input Power: 0.61 – 2.11 kW

    • Input Current: 2.80 – 9.25 A

    • COP: 4.27 – 4.82

    Heating (A7/W55):

    • Capacity Range: 3.10 – 8.12 kW

    • Input Power: 1.03 – 2.92 kW

    • Input Current: 4.57 – 12.79 A

    • COP: 2.78 – 3.01

    Cooling (A35/W12):

    • Capacity Range: 1.42 – 5.69 kW

    • Input Power: 0.67 – 2.44 kW

    • Input Current: 3.06 – 10.27 A

    SCOP Averages:

    • At 35°C: 4.80 kWh/kWh

    • At 55°C: 3.67 kWh/kWh

    Rated Input Power:
    3.50 kW

    Rated Input Current:
    15 A

    Refrigerant Type / Charge / GWP:
    R290 / 0.55 kg / 3

    CO₂ Equivalent (TCO₂eq):
    0.0017

    Operation Pressure (Low Side):
    0.8 MPa

    Operation Pressure (High Side):
    3.0 MPa

    Maximum Allowable Pressure:
    3.2 MPa

    Electrical Shockproof Class:
    I

    Ingress Protection:
    IPX4

    Maximum Outlet Water Temperature:
    75°C

    Operating Ambient Temperature Range:
    -25°C to 45°C

    Water Piping Connections:
    G1

    Rated Water Flow:
    1.0 m³/h

    Water Pressure Drop:
    20 kPa

    Water Pressure (Min. – Max.):
    0.1 – 0.3 MPa

    Sound Pressure (at 1 m):
    44 dB(A)

    Dimensions (L x W x H):
    1287 x 529 x 1054 mm

    Net Weight:
    150 kg


  • Product warranty on materials and workmanship

    15 years

    Linear power output warranty

    30 years

    We also provide the suitable inverters. For more information, please contact us directly.

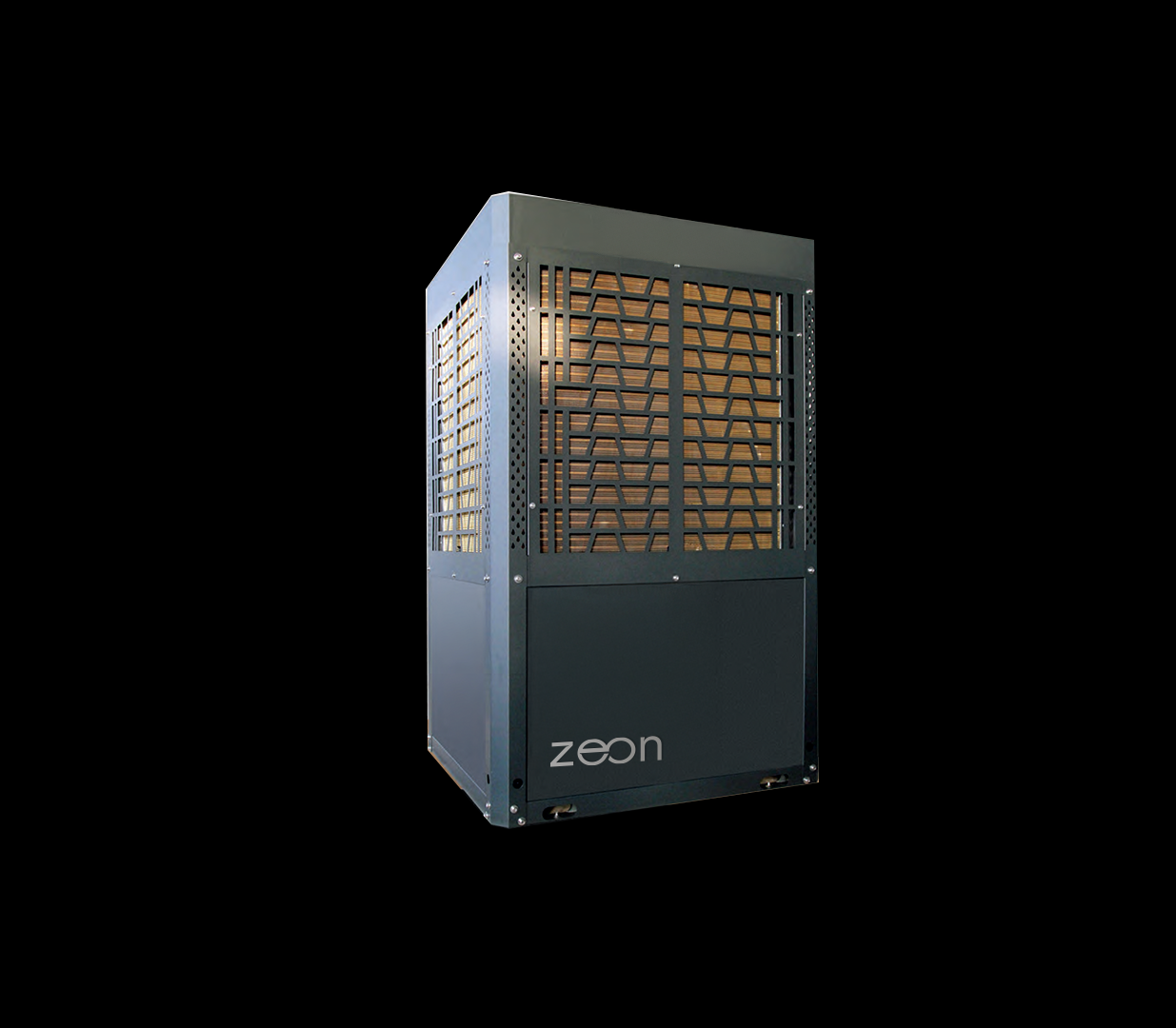

Zeon HP290

  • Power Supply

    380-415V / 3-phase ~ / 50Hz

    Input Power

    48.17 kW

    Heating (A7/W35)

    - Heating Capacity Range: 17.56 – 55.30 kW

    - Input Power: 3.15 – 14.85 kW

    - COP (Coefficient of Performance): 3.72 – 5.57

    Heating (A7/W55)

    - Heating Capacity Range: 17.95 – 51.20 kW

    - Input Power: 5.42 – 19.20 kW

    - COP: 2.67 – 3.31

    Cooling (A35/W12)

    - Cooling Capacity Range: 10.00 – 32.00 kW

    - Input Power: 3.84 – 13.30 kW

    SCOP Averages

    - At 35°C: 3.92 kWh/kWh

    - At 55°C: 3.25 kWh/kWh

    Rated Input Power:

    19.84 kW

    Rated Input Current:

    30.3 A

    Refrigerant Type / Charge / GWP:

    R290 / 2 x 2.5 kg / -

    CO₂ Equivalent (TCO₂eq):

    0.015

    Operation Pressure (Low Side):

    0.8 MPa

    Operation Pressure (High Side):

    3.0 MPa

    Maximum Allowable Pressure:

    3.0 MPa

    Electrical Shockproof Class:

    I

    Ingress Protection:

    IPX4

    Maximum Outlet Water Temperature:

    75°C

    Operating Ambient Temperature Range:

    -25°C to 45°C

    Water Piping Connections:

    G1 1/2

    Rated Water Flow:

    8.6 m³/h

    Water Pressure Drop:

    6.5 kPa

    Water Pressure (Min. – Max.):

    0.1 – 0.3 MPa

    Sound Pressure (at 1 m):

    60 dB(A)

    Dimensions (L x W x H):

    1155 x 990 x 1880 mm

    Net Weight:

    500 kg

  • Product warranty on materials and workmanship

    15 years

    Linear power output warranty

    30 years

    We also provide the suitable inverters. For more information, please contact us directly.
